Configuration Offerings
Construction Configurations (Added To Base Price)
- Bends
- Butt Casing
- Fully Notched
- Stainless Steel Sheath
Termination and Lead Options (Added To Base Price)
- Armor Cable (F) includes 3″ of lead beyond armor
- Ceramic Post Terminal Covers
- Copper Elbow
- Erge Plug (G)
- Erge Plug (G) with Ground
- Erge Plug (G) with Housing
- Ex-Flex, Fiberglass or Silicone Sleeving
- Fiberglass Leads (A or B)
- Ground Wire or Ground Post (with T-Box add Custom Pricing)
- Metal Braid (C, D, or E) includes 3″ of leads beyond braid
- Post Terminals, 10-24 threads (parallel, offset, or horizontal)
- Post Terminals, Extended
- Terminal Box – Custom
- Terminal Box – Standard (1.5″W x 1.5″T x 3″L)
Holes, Cut-Outs, and Gaps
- Cut-Outs < 1/2″ Wide
- Cut-Outs ≥ 1/2″ Wide
- Holes < 1″ in Diameter
- Holes ≥ 1″ in Diameter
- Mounting Holes up to 0.375″ (first two are free)
Note: Holes located in gaps or on edges will be priced as cutouts. Drawing may be required.
Options
- 3-Phase Construction (with T-Box add Custom Pricing)
- Dual Circuit (with T-Box add Custom Pricing)
- Dual Voltage (with T-Box add Custom Pricing)
- External Jumper
- Internal Jumper
- Silicone Seal
- Strain Relief
- Thermocouple Bayonet Adaptor
- Thermocouple – Built in
Length and Width Tolerance
Due to the nature of the manufacturing process, there is a length and width tolerance of ± 1/8″.
If you are ordering a strip heater as an insertion heater for an existing slot, please inform the plant at the time of the order so the design can be modified to ensure proper fit.
Styles

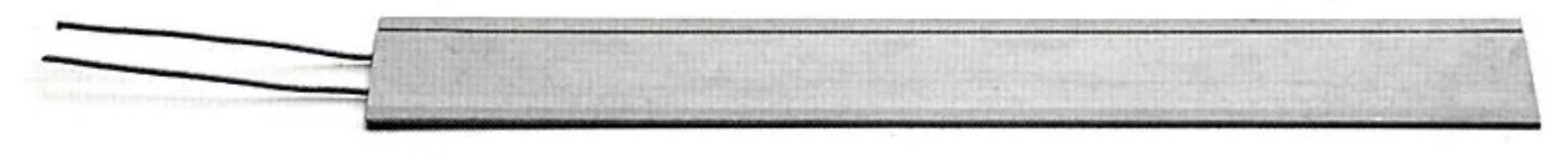

Style S1D
Leads out same end with metal braid.

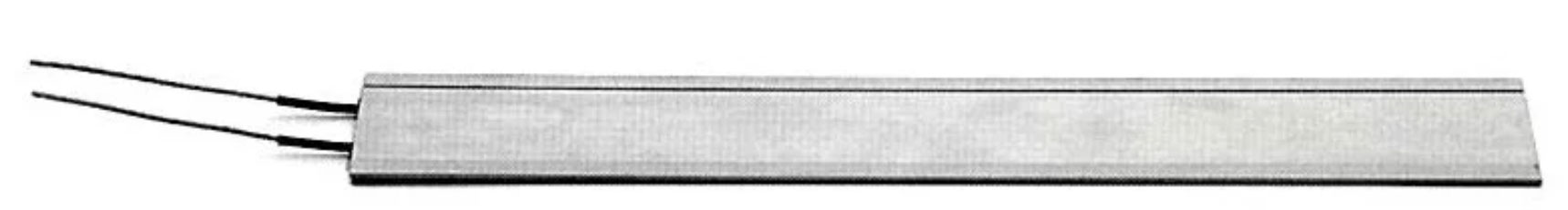

Style S1
Fiberglass leads out same end.

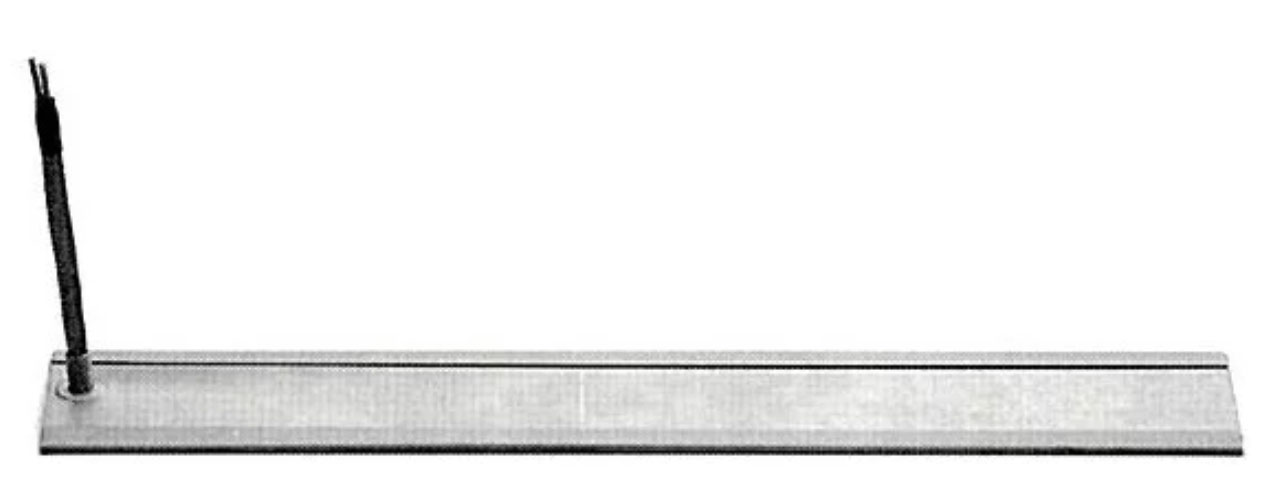

Style S2D
Leads exit perpendicular to heater in metal braid or armor cable.
Style S3
Post terminals side-by-side at same end.

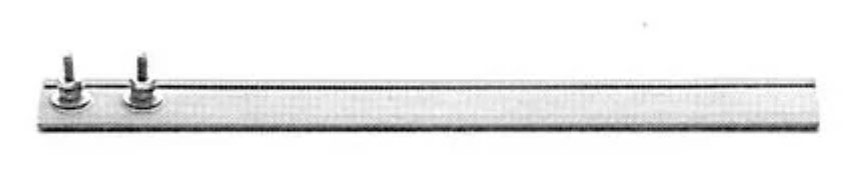

Style S4
Post terminals in line at same end.

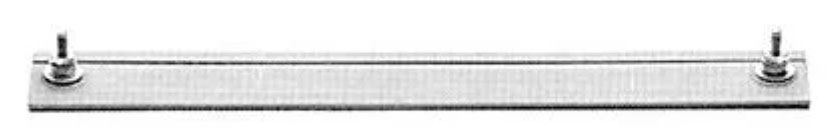

Style S5
Post terminals, one at each end.

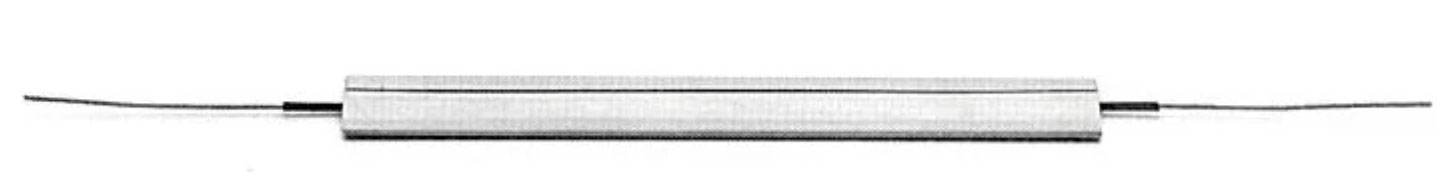

Style S3D
Leads exit at each end available in metal braid.
