Thermocouples

Configuration Offerings

Types

  • Type J SSB or SSA
  • Type K SSB or SSA
  • Grounded
  • Ungrounded
  • Polarized Male Plug Termination
  • Spade Plug Termination

Lugs, Plugs, Jacks

  • Stripped Ends
  • Spade Lugs
  • Mini Plug
  • Standard Plug
  • Mini Jack
  • Standard Jack

Style

  • Adjustable Depth
  • 1/8 – 27 NPT Compression Fittings, 90° Metric
  • Adjustable Depth Patch Fixed Length, Straight 1/4 – 28
  • Shallow Nozzle/Not-in-Melt Fixed Length, 45° Bend
  • #10 Washer
  • Fixed Length, 90° Bend
  • 13/32 Washer
  • 1/8 – 27 NPT Compression Fitting, Straight
  • General Purpose Fiberglass
  • 1/8 – 27 NPT Compression Fitting, 45°
  • General Purpose

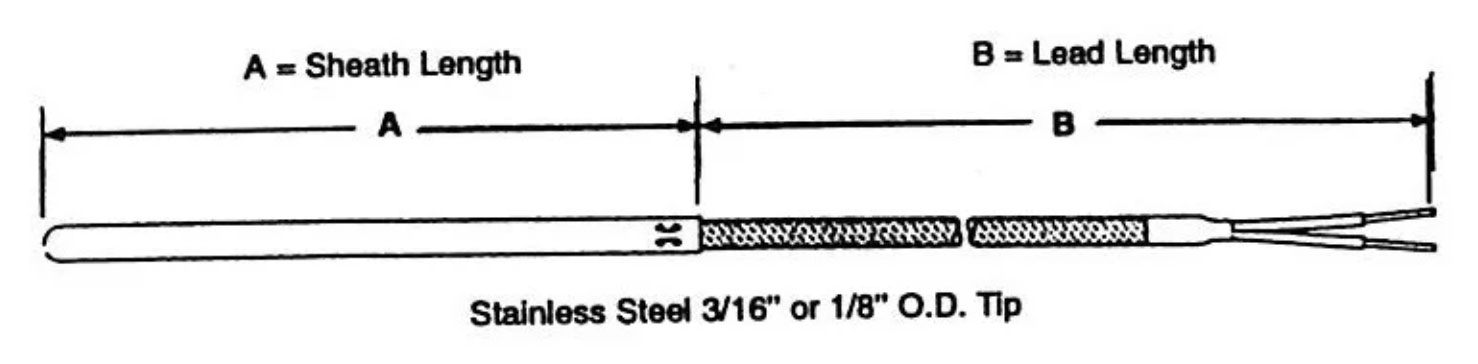

General Purpose Thermocouples

To order, specify catalog number, A Length, B Length, and 1/8″ or 3/16″ tip.

General Purpose Thermocouple

Terminal Style Fiberglass Leads Stainless Steel Armor Cable Stainless Steel Braid
1 LHTC 701 LHTC 801 ZPTC 901
2 LHTC 702 LHTC 802 ZPTC 902
3 LHTC 703 LHTC 803 ZPTC 903

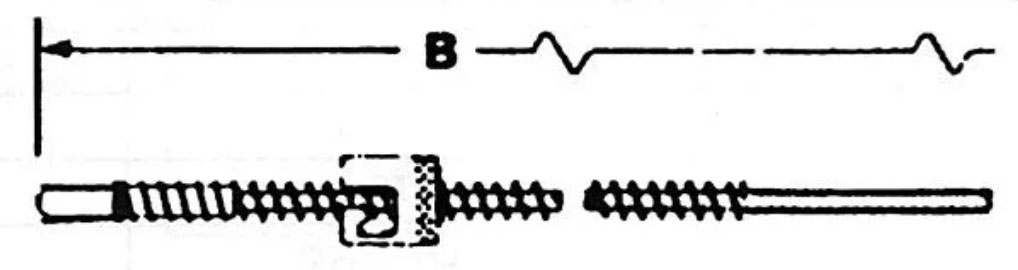

Adjustable Bayonet Spring Type Thermocouples

Stainless Steel Braided Leads, Grounded Junction, 3/16″ Diameter Probe

To order, specify catalog number. If you need a special length or dual thermocouple, please consult factory.

Adjustable Bayonet Spring Type Thermocouple

Terminal Style “B” Lead Length Catalog Number
1 48″ LHTC 10048
1 72″ LHTC 10072
1 96″ LHTC 10096
2 48″ LHTC 20048
2 72″ LHTC 20072
2 96″ LHTC 20096

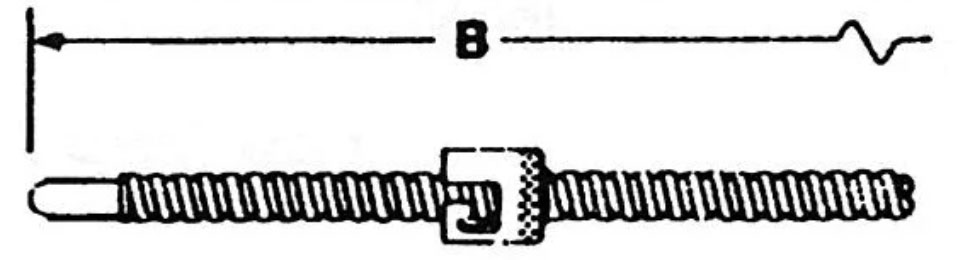

Adjustable Bayonet Armor Type Thermocouples

Stainless Steel Armor Leads, Grounded Junction, 3/16″ Diameter Probe

To order, specify catalog number. If you need a special length or dual thermocouple, please consult factory.

Adjustable Bayonet Armor Type Thermocouple

Terminal Style “B” Lead Length Catalog Number
1 48″ LHTC 10148
1 72″ LHTC 10172
1 96″ LHTC 10196
2 48″ LHTC 20148
2 72″ LHTC 20172
2 96″ LHTC 20196

Fixed Length Compression Fitting Mount Thermocouples

Stainless Steel Armor or Stainless Steel Braided Leads. Grounded Junction 3/16″ Dia. Probe.

To order, specify catalog number, A Length, B Length.

Straight

Fixed Length - Straight

Terminal Style Armor Cable Stainless Steel Braid
1 LHTC 501 LHTC 601
2 LHTC 502 LHTC 602
3 LHTC 503 LHTC 603

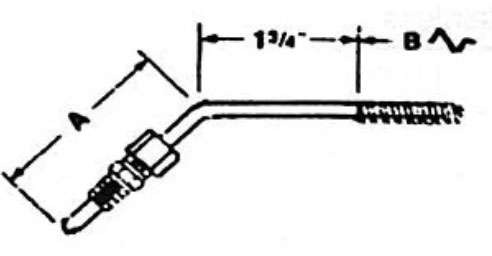

45° Bend

Fixed Length - 45°

Terminal Style Armor Cable Stainless Steel Braid
1 LHTC 504 LHTC 604
2 LHTC 505 LHTC 605
3 LHTC 506 LHTC 606

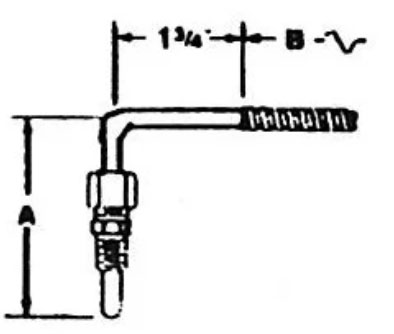

90° Bend

Fixed Length - 90°

Terminal Style Armor Cable Stainless Steel Braid
1 LHTC 507 LHTC 607
2 LHTC 508 LHTC 608

Thermocouple Terminal Styles

We can make the shown thermocouple terminals in calibration J, K, T, R, E, S, etc. These can also be made in a dual thermocouple.

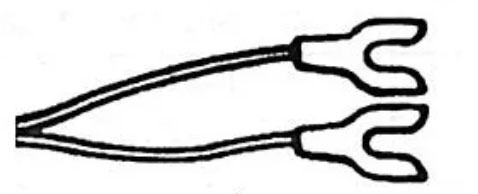

Style 1

Thermocouple Terminal Style 1

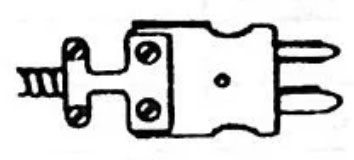

Style 2

Thermocouple Terminal Style 2

Style 3

Thermocouple Terminal Style 3
