Our equipment and software are integrated between 3D modeling, laser cutting, and bending. Accuracy and consistency between parts is guaranteed.

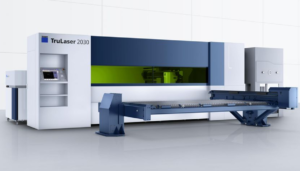

Laser Cutting
LectraHeat has two fiber-optic lasers with 4000W of power at its disposal.
- Advanced nesting software optimizes sheet usage & controls material costs.
- We provide de-burring of all laser cut parts.
Pricing is based on time and material with volume discounting available on a per order basis. Customers must provide a .DXF file.
| Material | Thickness Max (in) | Thickness Max (mm) |
|---|---|---|
| Mild Steel | 0.63 | 16 |
| Stainless Steel | 0.50 | 12.7 |
| Aluminum | 0.50 | 12.7 |
| Copper | 0.315 | 8 |
| Brass | 0.315 | 8 |

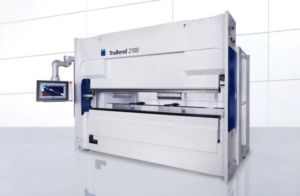

Brake Press
LectraHeat has the ability for both precision brake pressing as well as heavy duty brake pressing with its state-of-the-art 110-ton, 10-foot-wide brake.
| Mild Steel | Stainless Steel | ||
|---|---|---|---|
| Thickness | Length | Thickness | Length |
| 11 GA | 6′ | 11 GA | 3′ |
| 10 GA | 5′ | 10 GA | 2’6″ |
| 3/16″ | 3’6″ | 3/16″ | 1’9″ |
| 1/4″ | 2’6″ | 1/4″ | 1’3″ |
