Ceramic Band Heaters

Ceramic band heaters are constructed to provide high operating temperatures through a radiant heat process. These heaters are designed to withstand operating temperatures up to 1400°F for heating cylindrical objects. Ceramic band heaters have a layer of built-in insulation that reduces power consumption and lowers utility costs. Various termination exits and constructions allow for custom designs and maximum performance.

RFQ – Ceramic Band

Clamping Styles

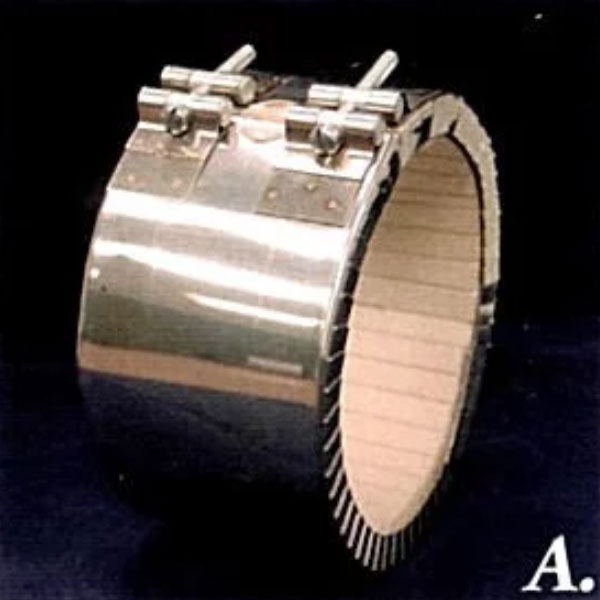

Built-in strap lock-up

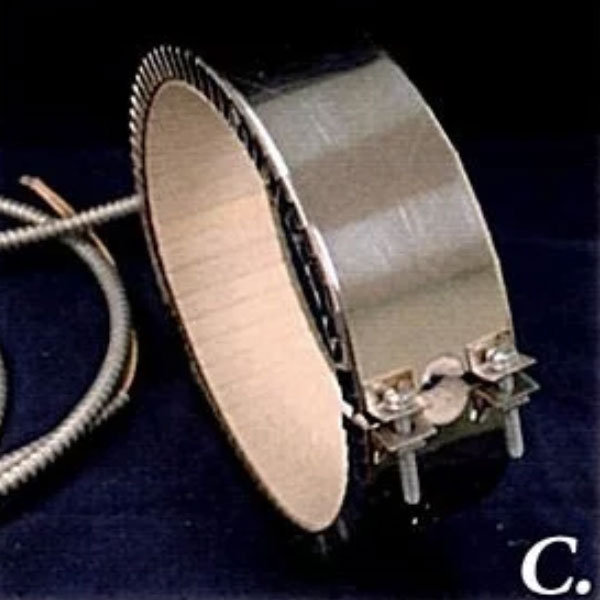

Flange lock-up
Spring Loaded Screw lock-up

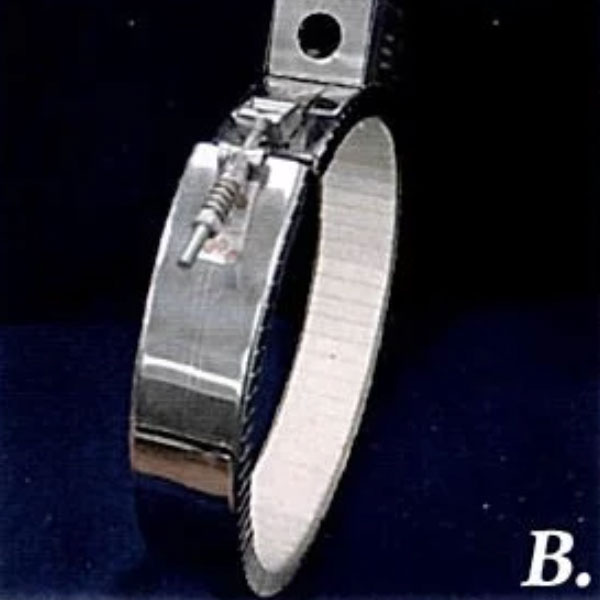

Latch & Trunion lock-up

Special Features

2 piece construction
Standard or additional insulation
Holes and cut-outs
Single or 3 phase
Dual voltage
Partial coverage

Configuration Offerings

Construction Configurations (added to base heater price)

2-Piece Construction
Insulation (1/4″ total)
Insulation, additional

Termination and Lead Options (added to base heater price)

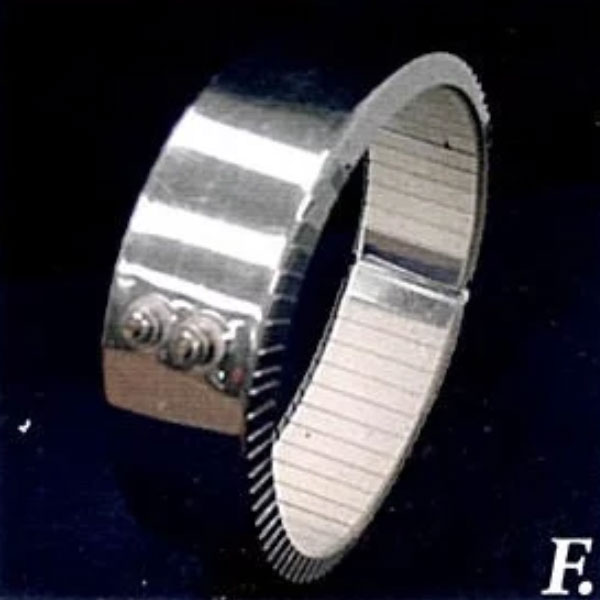

Post Terminals 1/4-20 thread (parallel, off-set, or horizontal)
Post Terminals – Extended
Ceramic Post Terminal Covers
Terminal Box – Standard (1.5″ x 1.5″ x 3″)
Terminal Box – Custom
Erge Plug (G) with Housing
Fiberglass Leads (A or B)
Metal Braid (C, D, or E) includes 3″ of leads beyond braid

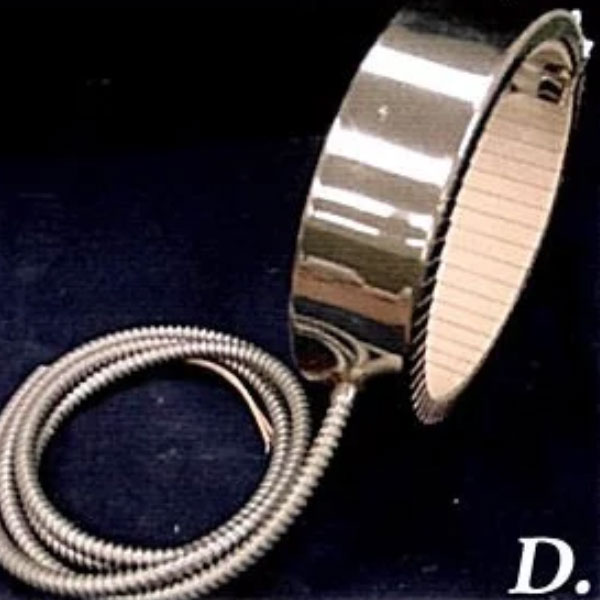

Armor Cable (F) includes 3″ of leads beyond braid
Ground Wire or Ground Post (add Custom Price with T-Box)
Ex-Flex, Fiberglass or Silicon Sleeving
Copper Elbow

Holes, Cut-Outs, and Gaps

Cut-Outs < 1/2″ Wide
Cut-Outs ≥ 1/2″ Wide
Holes < 1″ in Diameter
Holes ≥ 1″ in Diameter
Mounting Holes up to 0.375″

Clamping Options

Flange
Latch and Trunion
Spring Loaded Barrel Nuts
Welded on Barrel Nut (Built in Strap (BIS))

Options

BX Connector
Dual Circuit (with T-Box add Custom Pricing)
Dual Voltage (with T-Box add Custom Pricing)
External Jumper
Internal Jumper
Strain Relief
Thermocouple Bayonet Adaptor
Thermocouple – Built in
3-Phase Construction (with T-Box add Custom Pricing) – pricing doubles when 2-Piece construction is requested
